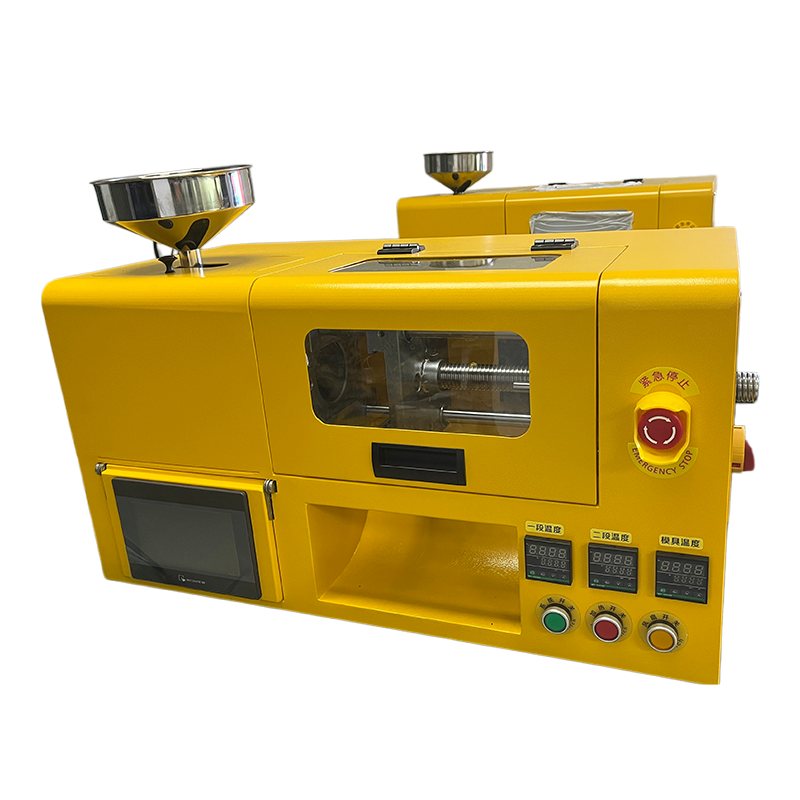

Micro Desktop Injection Molding Machine

High-precision desktop all-electric injection molding machine manufactured by Kingchen Machinery. Adopts servo motor screw locking design, low noise, power saving, easy operation, perfect for DIY, education, lab and small-scale plastic manufacturing.

SPECIFICATION:

Model No.: KCHE300

Screw Diameter:14mm
Injection Pressure:30 mpa
Theoretical Injection Volume:20 grams
Maximum Shooting Speed: 10
Screw Stroke:5mm
Nozzle Stroke:5mm
Claping Model:Servo motor screw clamping
Injection Ways:Screw extrusion
Motor:1500W
Clamping Force:3 tons
Clamping Stroke:150mm
Max Mold Size:100*100mm
Space between Tie Bars:120 mm
Dimensions:850*400*450mm
Operation Touchscreen Size:7 inch
