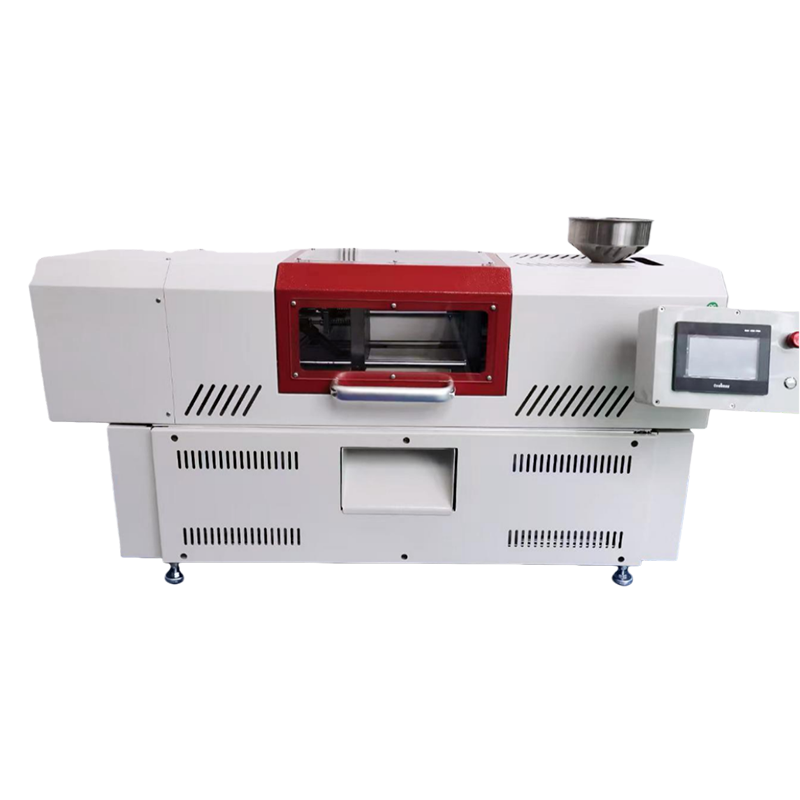

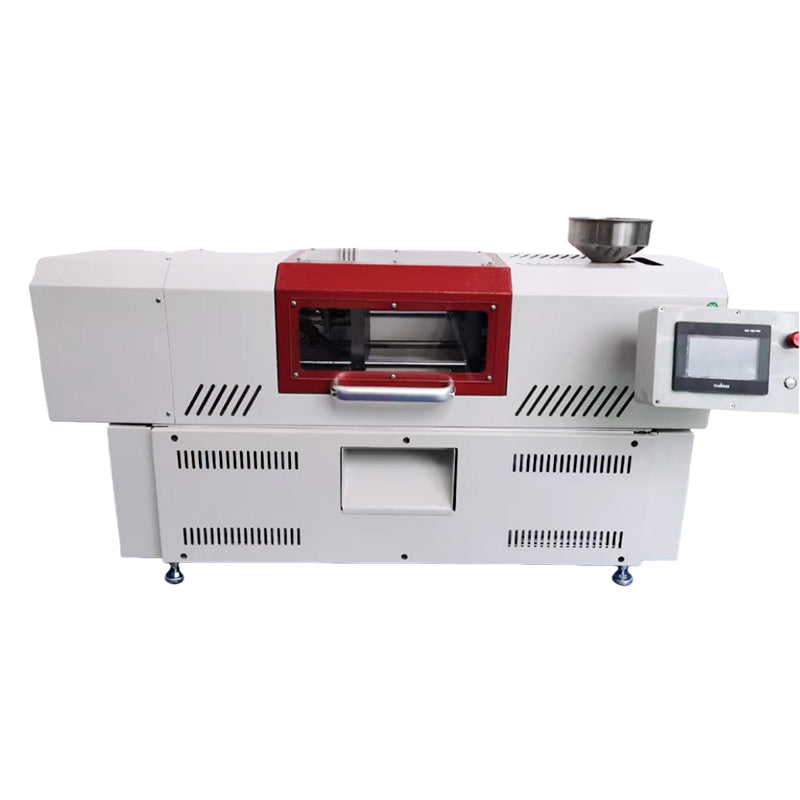

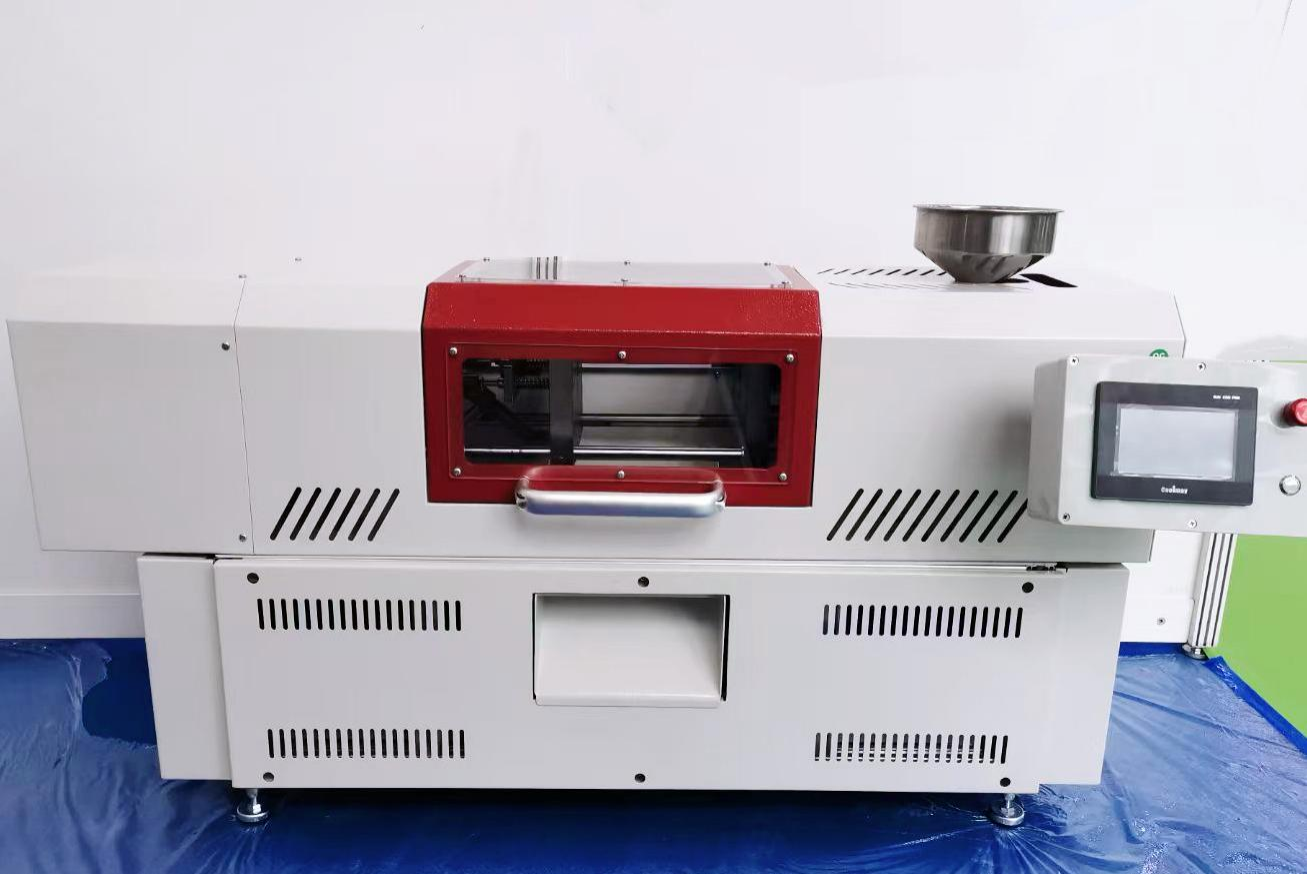

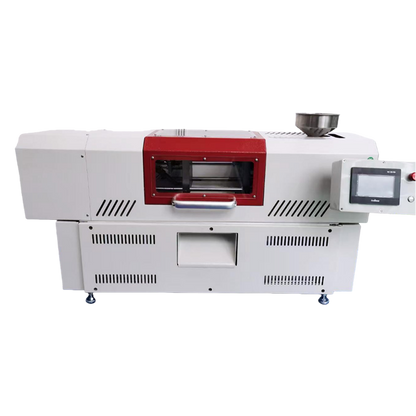

8 Tons Benchtop Injection Molding Machine

This model's design concept focuses on small size to save space. It features low energy consumption and high
efficiency, applicable to various conventional plastic pellets. It is easy to operate and maintain, meeting the needs of
small-batch plastic part production. Main application scopes:material testing, color testing, teaching, small-batch plastic parts, etc.

Model No.：KCHM08
Screw Diameter：20 mm
Plasticizing Capacity：5 g/s
Injection Pressure    ：20 Mpa
Inject Capacity：10 Gram
Screw Speed：0-100 RPM
Mold Clamping Force：8 Tons
Opening Stroke：95 mm
Space Between Tie Bars：130*130mm
Max. Mold Height    ：150 mm
Min.Mold Height：50 mm
Ejectior Stoke    ：30 mm
Ejector Force    ：10 KN
Ejector Screw Quantity    ：2 PCS
Voltage：220V
Max.Motor Torque：15+15
Servo Motor Frame：130+130mm
Servo Motor Power：3.8+3.8 KW
Hopper Capacity：600 ML
Dimensions：1400*400*700mm
Net Weight：130 KG
Delivery Package：Export Polywood Carton
