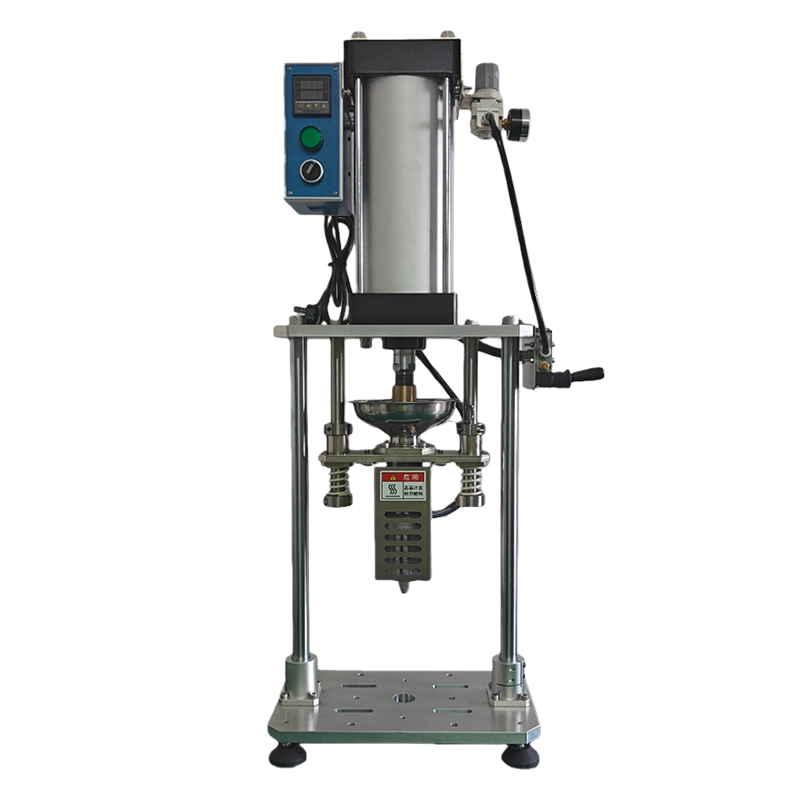

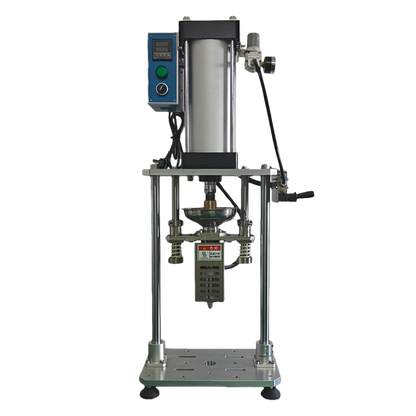

50g Desktop Pneumatic Vertical Injection Molding Machine

Bullet Points (Key Features):

· PRECISE 50G INJECTION CAPACITY – Ideal for small-scale production, prototyping, and R&D. Produces consistent, high-quality plastic parts with minimal material waste.
· PNEUMATIC VERTICAL DESIGN – Space-saving vertical structure with pneumatic clamping and injection. Provides stable pressure and easy operation for desktop use.

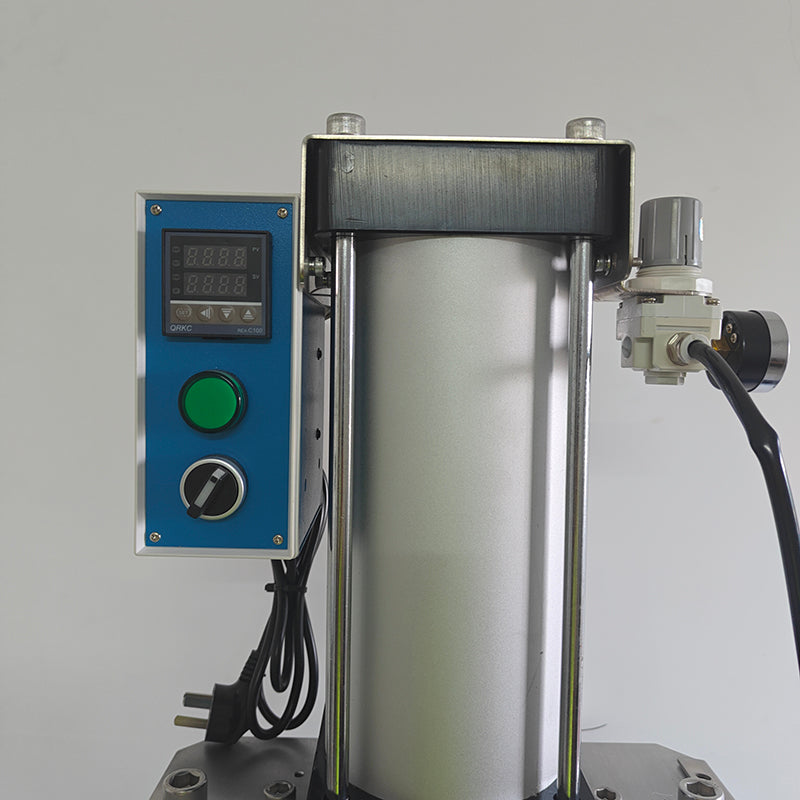

· ADJUSTABLE TEMPERATURE & PRESSURE – Digital temperature control (up to 400°C / 752°F) and adjustable injection pressure allow you to work with various thermoplastics (ABS, PP, PE, etc.).
· COMPACT & PORTABLE – Fits perfectly on any workbench. Lightweight design (approx. 35–45 kg) with small footprint, perfect for workshops, schools, and startups.
· EASY TOOL CHANGE – Quick-mold mounting system reduces setup time. Comes with basic mold frame and safety shields for operator protection.

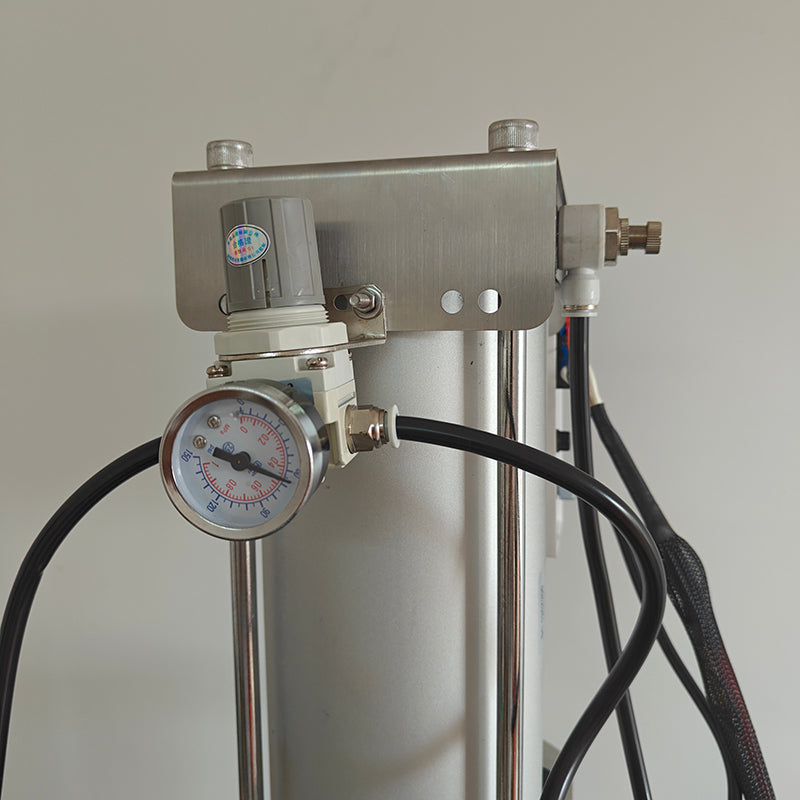

· SIMPLE TO OPERATE – No complex hydraulics or high power draw. Runs on standard compressed air (0.4–0.8 MPa / 60–120 psi) and standard AC power.

Technical specs at a glance:

· Injection capacity: 50g (approx. 2 oz)
· Temperature range: up to 400°C
· Clamp force: pneumatic (up to 1–2 tons depending on air supply)
· Air pressure required: 0.4–0.8 MPa (60–120 psi)
· Power: 110V or 220V (select at checkout) – 1200W heating power
· Machine dimensions: approx. 500×350×700 mm
· Weight: ~40 kg

Perfect for:

· Product prototyping
· Low-volume custom parts
· University engineering labs
· Small plastics manufacturing businesses
· DIY and maker spaces

Please note:

Molds are not included. You will need to machine your own mold cavity into the provided mold frame or purchase ready-made molds separately.

The price  does not inlude the shipping cost.
