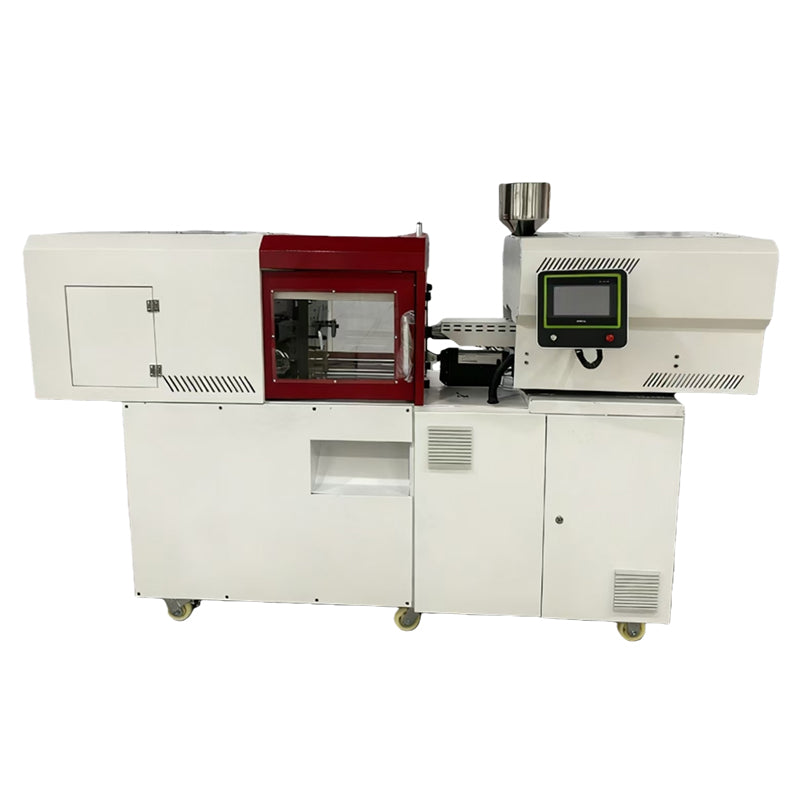

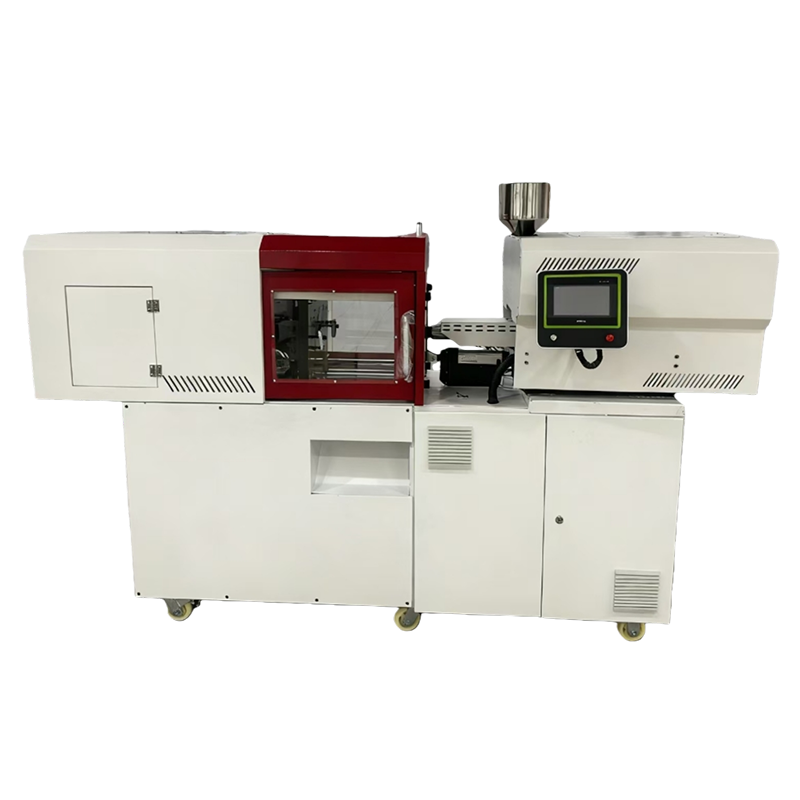

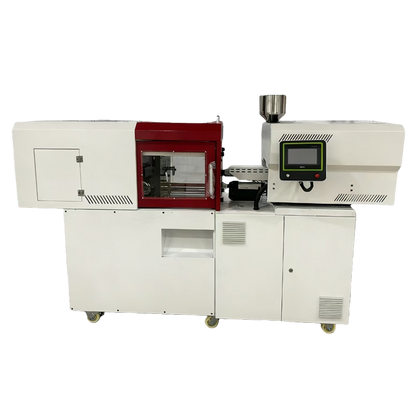

30 Tons Plastic Molding Machine For 40 gram Plastic Products

It is suitable for the mass production of small products and plastic parts, such as electronic components and micro accessories. It reduces raw material waste and lowers production costs. The compact machine body saves workshop space, and the mold and material change speed is fast. It is more suitable for small-batch and multi-variety production, meeting the needs of rapid prototyping and flexible manufacturing. Meanwhile, it
has lower energy consumption than large-scale equipment and improves product qualification rate.
Its working voltage is 220V, which makes it very convenient for you to use this injection molding machine in your home, studio, garage, or any other place, and start your own business.

Specifications

Model No.: KCHM300
Screw Diameter: 30 mm
Plasticizing Capacity: 5 g/s
Injection Pressure: 90 Mpa
Inject Capacity: 40 Gram
Screw Speed: 0-100 RPM
Mold Clamping Force: 30 Tons
Opening Stroke: 260mm
Space Between Tie Bars: 290*290mm
Max. Mold Height : 260 mm
Min.Mold Height: 60 mm
Ejectior Stoke : 60 mm
Ejector Force: 20 KN
Ejector Screw Quantity: 2 PCS
Voltage: 220V
Max.Motor Torque: 20+20+35
Servo Motor Frame: 180+130+130mm
Servo Motor Power:7.5+5.2+5.2 KW
Hopper Capacity: 700 ML
Dimensions: 2450*580*1500mm
Net Weight:700 KG
Delivery Package: Export Polywood Carton
