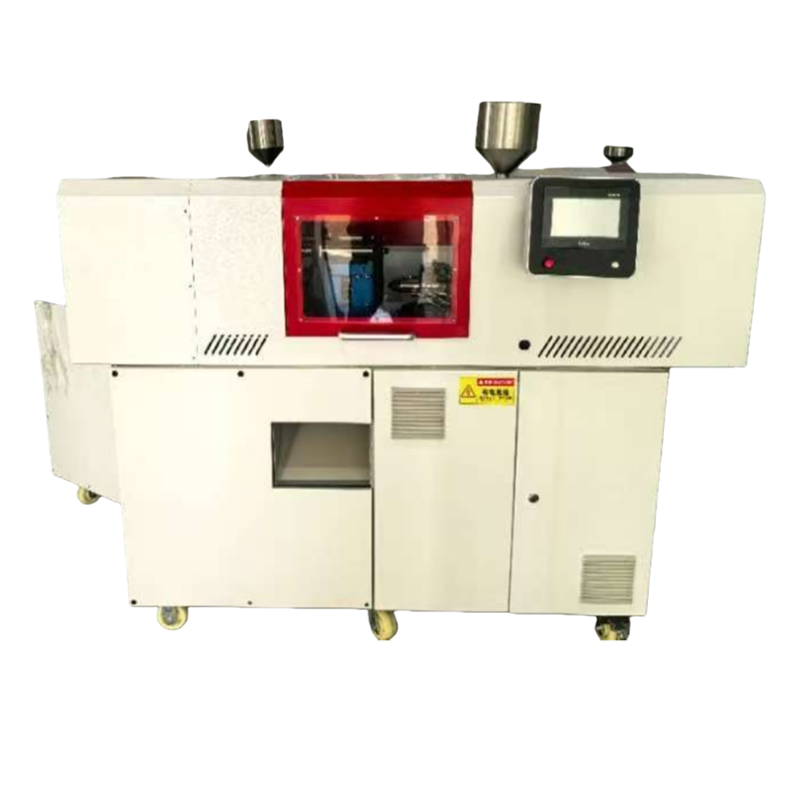

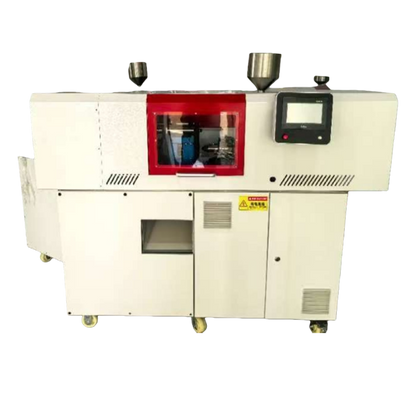

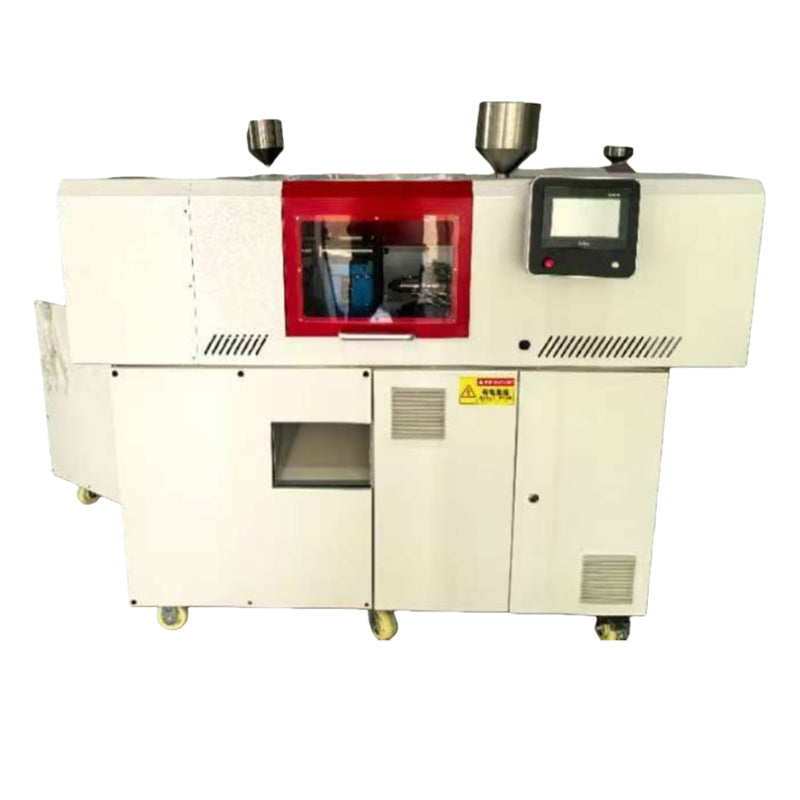

20 Tons Mini Injection Molding for DIY Plastic Parts

The first micro injection molding machine is compact, significantly saving floor space. It is equipped with three servo motors, uses only 220V power, and features injection and back pressure functions. Its design concept is to ensure stable product molding for manufacturing factories, reduce investment costs, and save unnecessary expenses. It is compatible with various conventional and special plastic pellets. The operation interface is simple and intuitive, easy for beginners to use, with convenient daily maintenance and outstanding cost performance. Main application scopes: factory production, color testing, material testing, etc.

Specifications

Model No.: KCHM20A
Screw Diameter: 25 mm
Plasticizing Capacity: 5 g/s
Injection Pressure    ：50 Mpa
Inject Capacity：30 Gram
Screw Speed：0-100 RPM
Mold Clamping Force: 20 Tons
Opening Stroke: 140 mm
Space Between Tie Bars: 230*230mm
Max. Mold Height : 220 mm
Min.Mold Height: 60 mm
Ejectior Stoke: 50 mm
Ejector Force: 20 KN
Ejector Screw Quantity : 2 PCS
Voltage: 220V
Max.Motor Torque: 15+15+20
Servo Motor Frame: 130+130+130mm
Servo Motor Power: 5.2+3.8+3.8 KW
Hopper Capacity: 4100 ML
Dimensions: 1850*550*1400mm
Net Weight: 470 KG
Delivery Package: Export Polywood Carton
